Hard Hat

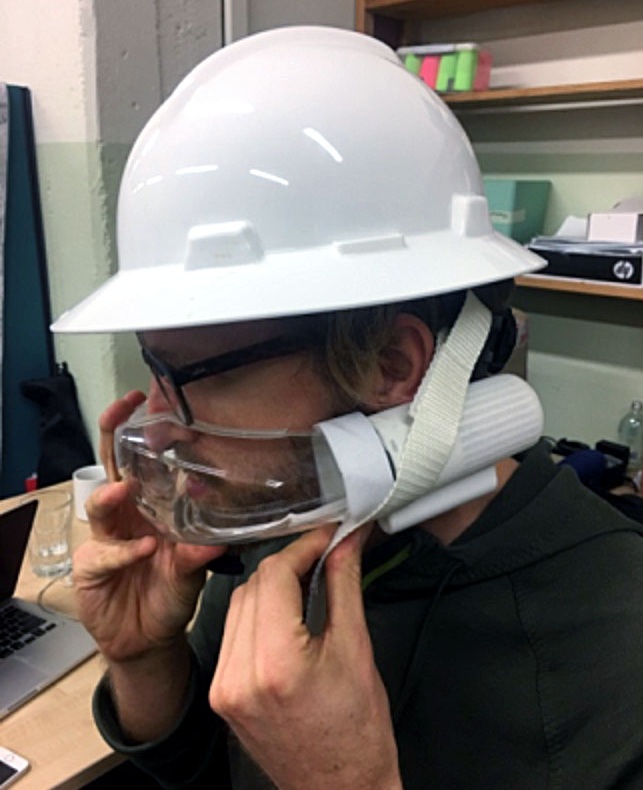

Hard hat integration overview

Several connections have been added to make the facewear compatible with hardhats:

  1. A chinstrap with clip has been added that runs from the hardhat, over the facewear and connects under the chin

  2. Velcro has been adhered to the clear surface of the facewear, next to the filters, so that the chinstrap secures to the facewear.

Ensure that the velcro connection points on the chinstrap attach to the velcro connection points on the facewear. Then click together the clip and adjust the excess strap through it.



STEP 1

Open neck grabs with thumbs, holding grabs open



STEP 2

Hold neck grabs open and slide onto neck below chin



STEP 3

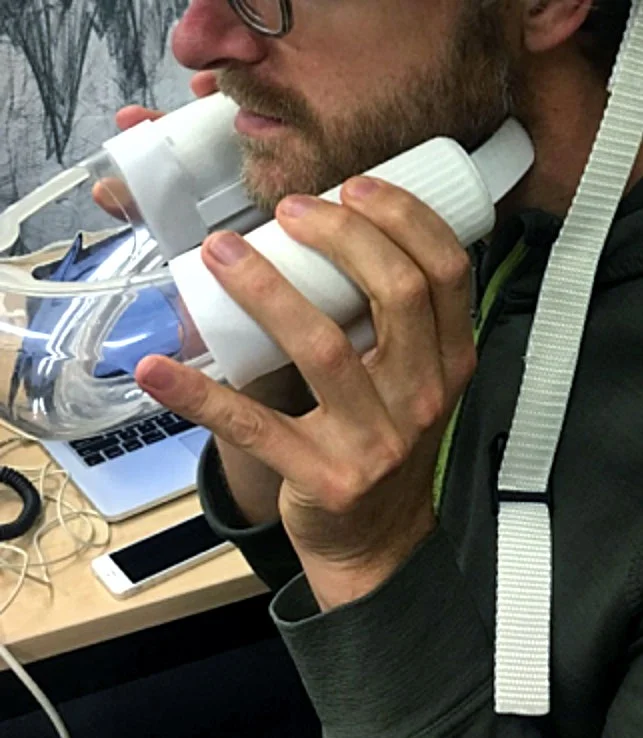

Hold facewear with one hand and locate velcro connection points on chinstrap



STEP 4

Run chinstrap over the facewear and connect the velcro connection points on both sides to facewear



STEP 5

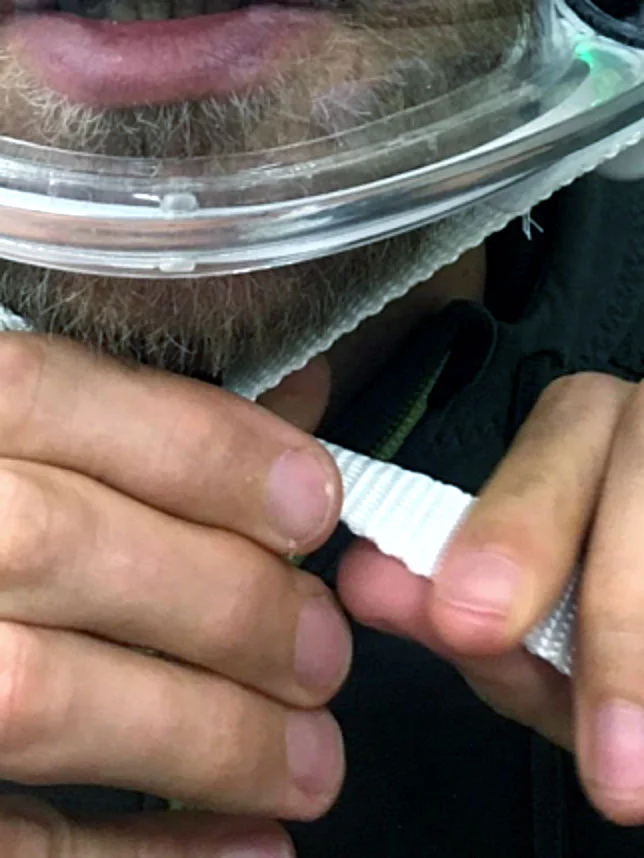

Click together chinstrap clip



STEP 6

Pull excess strap through clip to tighten chinstrap



STEP 7

Check that velcro connection points between chinstrap and facewear are securely connected. The facewear is now ready to use
